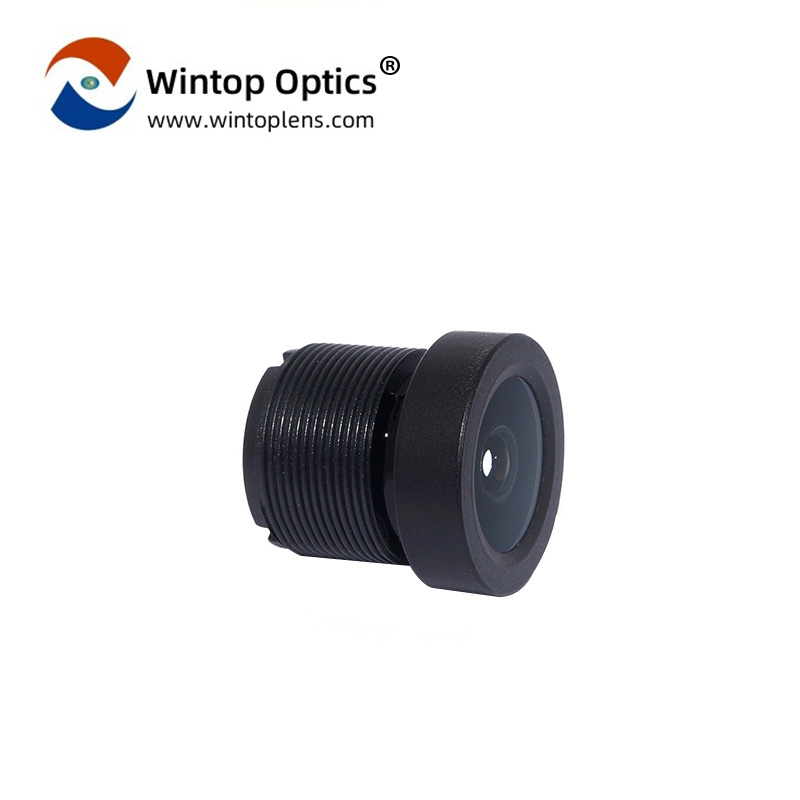

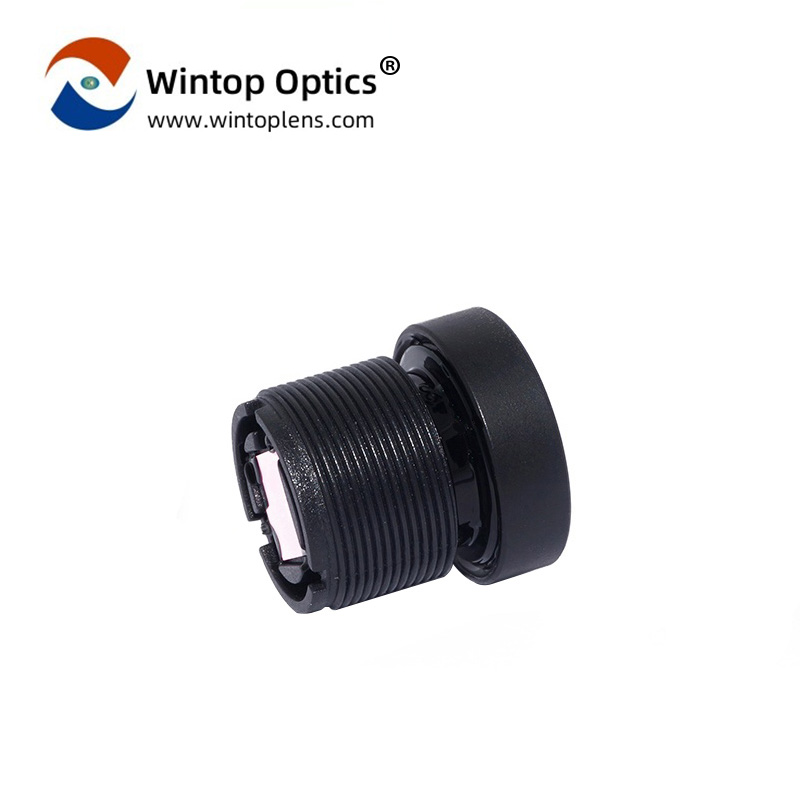

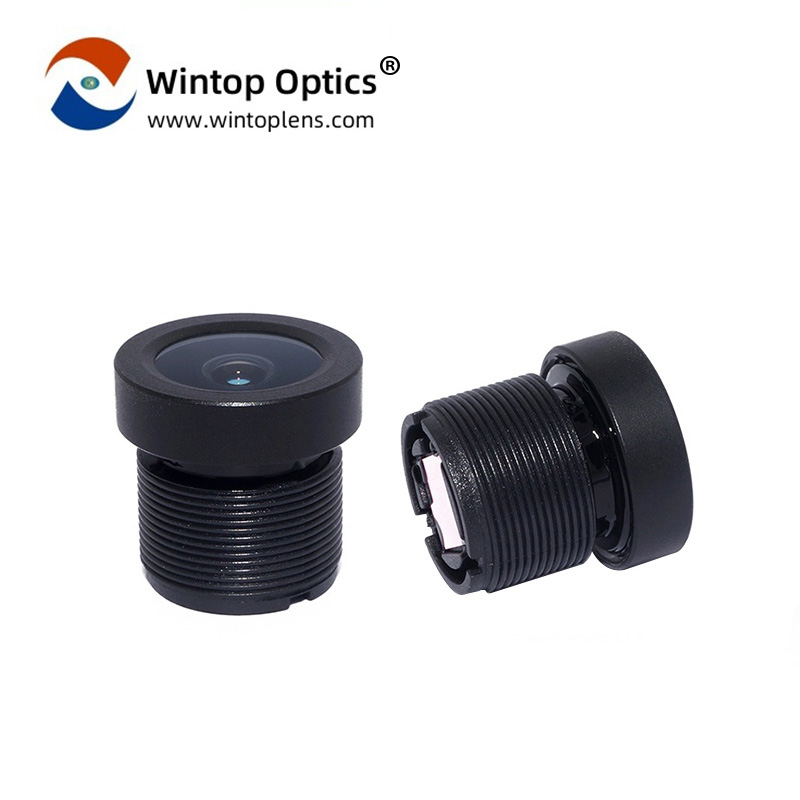

IMX335 Streaming Video Rearview Lenses 110 Degree HD DVR Camera Lens YT-7626-C1

YT-7626-C1: The Crystal Clear Companion for Automotive Streaming Excellence

Unparalleled Clarity for Automotive Streaming Camera Lenses

The YT-7626-C1 car camera lens is a state-of-the-art automotive streaming rearview camera lens designed to provide unparalleled clarity and detail for the modern vehicle. With an optical focal length (EFL) of 3.62mm and a total length (TTL) of 18.15mm, including a Back Focal Length (BFL) of 6.29mm, this lens is crafted for precision streaming in the most demanding conditions.

High-Resolution Imaging with a Balanced Field of View

Featuring a CMOS sensor IMX335 (1/2.8'' inch 2592*1944), the YT-7626-C1 streaming video mirror lens achieves a 3-million-pixel high-definition resolution. It offers a 110-degree diagonal field of view (Dfov), an 85-degree horizontal field of view (Hfov), and a 62° vertical angle, with a maximum imaging circle diameter of 7.0mm. This ensures comprehensive coverage for rearview monitoring and recording.

F/NO1.8 Aperture for Enhanced Visibility

Equipped with an F/NO1.8 aperture, the YT-7626-C1 streaming video rear view  lens is designed to capture high-quality images in a variety of lighting conditions, ensuring enhanced visibility and safety while driving. The large aperture allows more light to reach the sensor, providing bright and clear images.

Customizable Mounting Options for Seamless Integration

The car streaming video dvr lens features an M12 mount, with a lens end front cover diameter of 14mm, offering a secure and standardized connection to a wide range of automotive camera systems. It can be customized to an AA Gluing lens according to specific customer project requirements, ensuring versatility in application.

Durable Construction with Advanced Optical Technology

The YT-7626-C1 auto streaming video lens is encased in a robust metal barrel, showcasing its high-quality build. It utilizes a all-glass lens structure and includes a 650nm IR filter, ensuring excellent MTF performance and reliability. This advanced lens technology provides clear and vibrant images, even in challenging lighting conditions.

Rugged and Reliable for All Conditions

With an IP69K rating for dust and water resistance, the YT-7626-C1 electronic rearview lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it a dependable choice for all weather conditions.

Wide-Ranging Applications for Extended Utility

The YT-7626-C1 streaming video dvr camera lens is versatile, extending its utility beyond automotive streaming rearview applications. It is suitable for in-cabin passenger monitoring, electronic rearview mirrors, streaming media, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.

In Summary

The YT-7626-C1 car camera lens is the epitome of automotive streaming rearview technology, offering a combination of high-definition imaging, a balanced field of view, and superior night vision capabilities. Its durable construction and advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7626-C1, ensuring that every journey is safer and more informed with clear rearview streaming.
