YT-1698-A8: The Action-Ready Lens for Unmatched Clarity and Performance
| know more about YT-1698-A8 Sports Camera Lens parameters |
| Sensor Circle(mm) |
OV2718 1/2.7'' |
| Focal Length(EFL) |
3.0mm |
| F/NO.(Infinite) |
1.7 |
| Optical TTL |
23.30 |
| Back Focal Length |
6.75mm |
| Flange Back Length |
5.73mm |
| TV Distortion |
-17% |
| Relative Illumination |
>90% |
| CRA |
11° |
| Wave Length |
460~620nm T≥90%
650±10nm T=50%
|

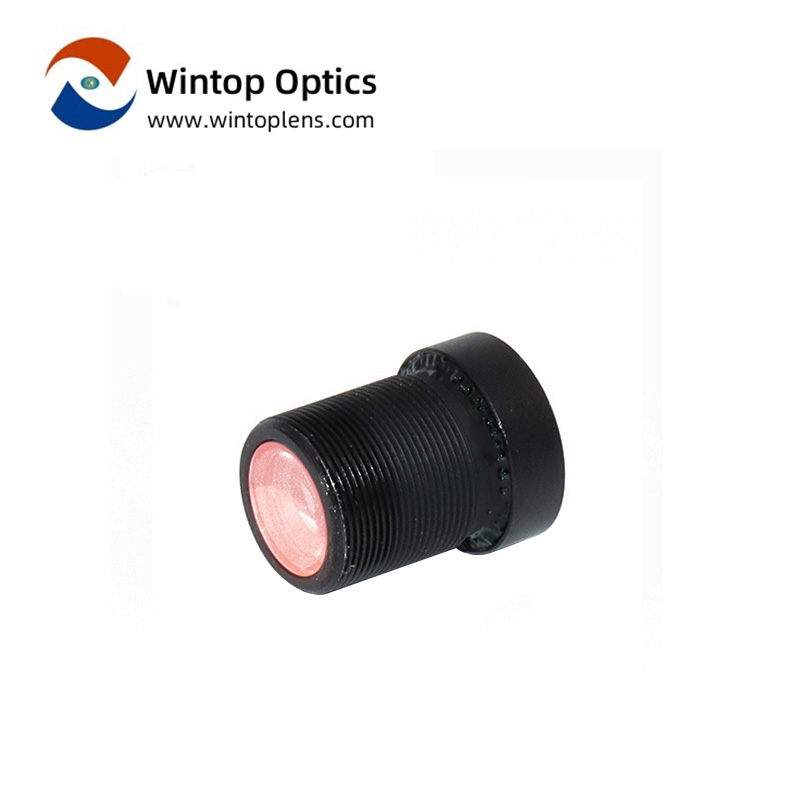

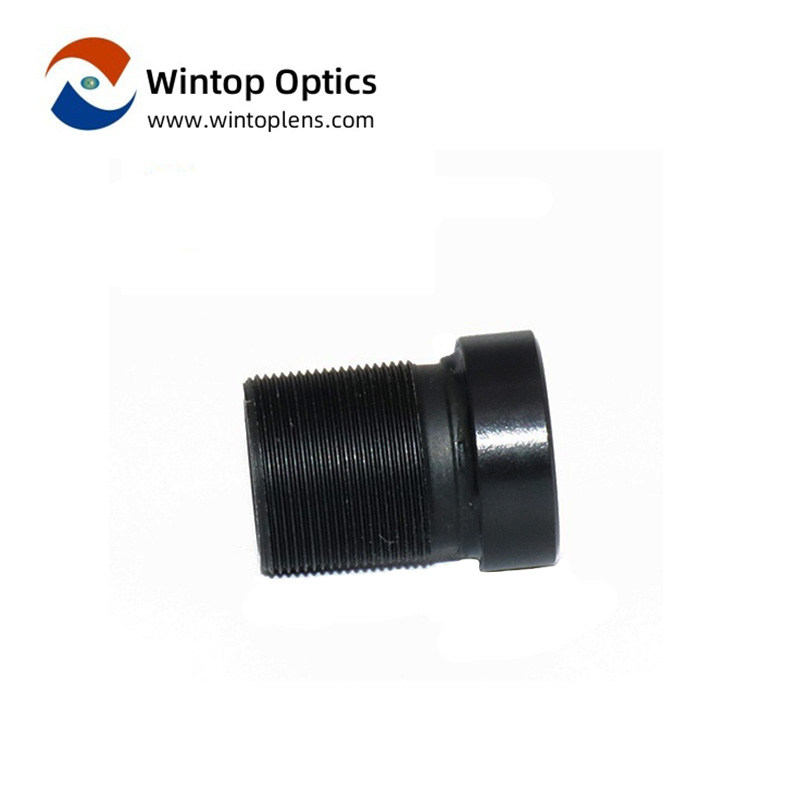

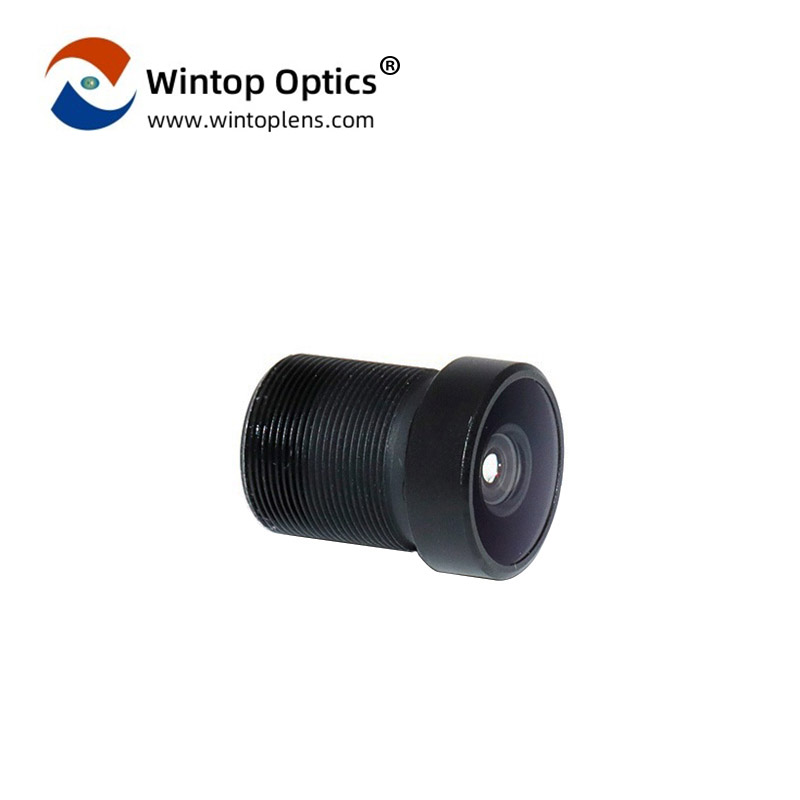

Captivating Clarity in Motion The YT-1698-A8 is a sports camera lens designed for action cameras, boasting a 3.0mm optical focal length and a compact 23.3mm optical total length with a Back Focal Length (BFL) of 6.75mm. This lens is crafted to capture the thrill of every movement with precision and clarity.
High-Definition Imaging with an Ultra-Wide Perspective Engineered to match the CMOS sensor OV2718 (1/2.7'' inch), the YT-1698-A8 action camera lens achieves a 4-million-pixel high-definition resolution. It offers a 135-degree diagonal field of view (Dfov), an 110-degree horizontal field of view (Hfov), and a 58-degree vertical angle, ensuring that no moment is missed. The maximum imaging circle diameter of 7.0mm captures the full breadth of the action.
F/NO1.7 Aperture for Exceptional Low-Light Performance Featuring an F/NO1.7 large aperture, the YT-1698-A8 sports camera lens excels in low-light conditions, providing superior night vision capabilities. This ensures that the lens delivers clear and bright images, whether it's day or night, making it ideal for action cameras that need to perform in a variety of lighting environments.
Customizable Mounting for Seamless Integration The high resolution lens is equipped with an M12 mount (M12*P0.5), and the lens end cap diameter is 25mm. This allows for easy integration with a wide range of action camera systems, and it can be customized to meet specific project requirements, offering versatility in application.
Durable Construction with Advanced Optical Technology The YT-1698-A8 sports drone camera lens is encased in a robust metal barrel, showcasing its high-quality build. It utilizes a full-glass lens construction, enhancing optical performance and durability. The inclusion of a blue glass IR filter ensures excellent MTF performance and reliability, providing clear and sharp images in various lighting conditions.
Versatile Applications for Extended Utility The YT-1698-A8 m12 lenses is not limited to action cameras. Its wide application range makes it suitable for handheld gimbal cameras, drone cameras, intelligent robot cameras, AI cameras, consumer electronics, sports cameras, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.
In Summary The YT-1698-A8 imaging camera lens is the embodiment of action-ready technology, offering a combination of high-definition imaging, an ultra-wide field of view, and superior night vision. Its durable construction and advanced features make it an indispensable tool for capturing the excitement of life in motion. Experience the versatility and excellence of the YT-1698-A8, ensuring that every adventure is captured with clarity and precision.
