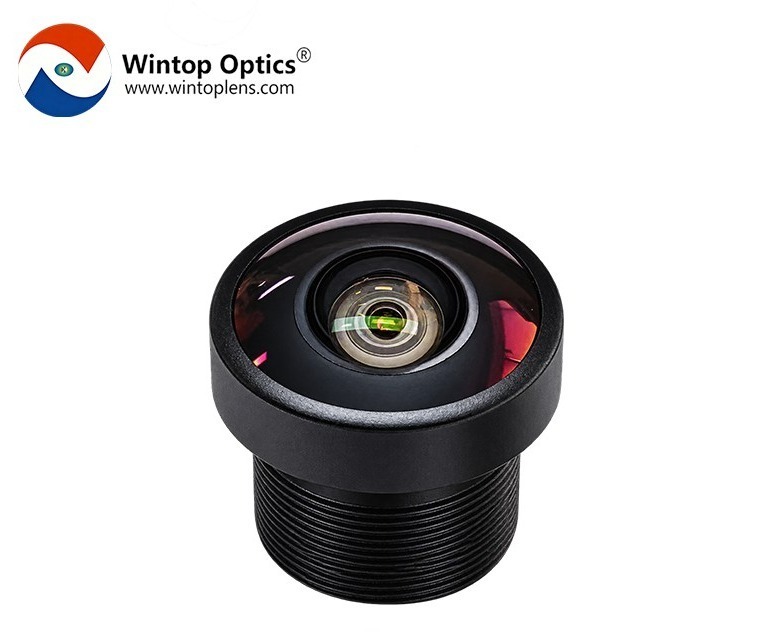

Wintop Optics Introduces YT-7603-F1 Ultra-Wide Fisheye Lens for Robotic Vision and Navigation

As autonomous robots become increasingly capable of navigating complex environments, wide-angle visual perception plays an important role in environmental awareness and obstacle detection. To support these applications, Wintop Optics presents the YT-7603-F1 200°+ Ultra-Wide Angle M12 Fisheye Lens, designed for compact robotic vision systems that require extensive scene coverage.

Featuring a 1.34mm effective focal length, an F2.0 aperture, and an ultra-wide field of view exceeding 200° horizontally and diagonally, the YT-7603-F1 provides a broad visual perspective for robotic cameras. Its compact optical design and M12 threaded interface make it a practical option for embedded vision systems with limited installation space.

Ultra-Wide Field of View for Enhanced Environmental Perception

The YT-7603-F1 delivers a field of view of more than 200° horizontally, 127° vertically, and more than 200° diagonally. This expansive coverage helps robotic camera systems capture a broader surrounding scene, supporting environmental observation and reducing visual blind spots.

For autonomous mobile robots, automated guided vehicles (AGVs), and service robots, wide-angle image input can help perception systems identify nearby obstacles and interpret surrounding environments. When integrated with suitable image-processing algorithms, the lens can support navigation, visual perception, and obstacle-detection functions.

F2.0 Large Aperture for Low-Light Imaging

Equipped with an F2.0 aperture, the YT-7603-F1 is designed to provide useful light intake in indoor and relatively low-light environments. This makes it suitable for robotic vision systems operating in warehouses, corridors, workshops, and other environments where lighting conditions may vary.

Actual low-light imaging performance depends on the image sensor, exposure settings, illumination, and overall camera design.

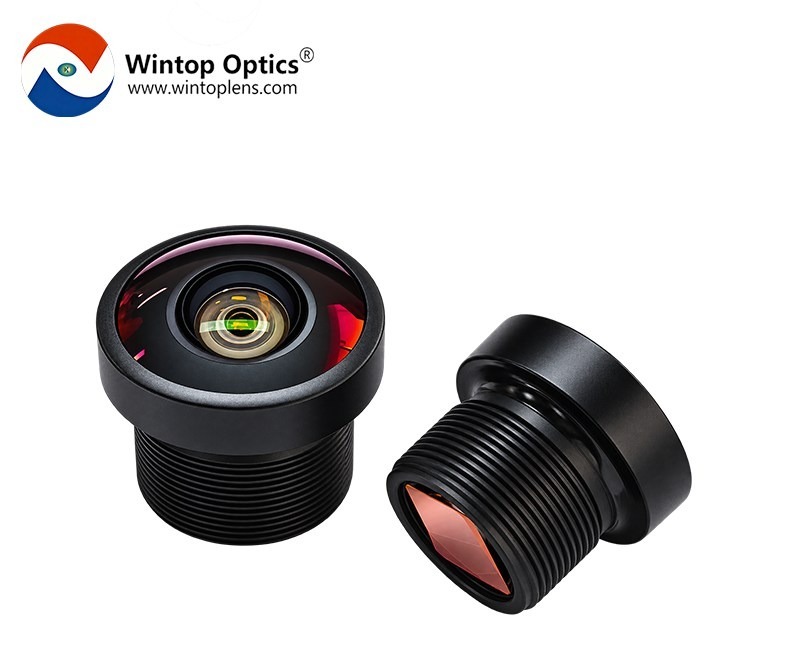

Compact M12 Design for Embedded Robotic Cameras

The YT-7603-F1 combines an ultra-short 1.34mm focal length with a compact optical assembly measuring 16.78mm in optical total length. Its M12 × P0.5 threaded interface supports integration into compatible compact camera systems.

The lens uses a 2G4P hybrid optical structure, combining glass and plastic optical elements in a compact configuration. It supports 1/2.7-inch image sensors and delivers up to 2MP imaging resolution at 1920 × 1080, with a specified pixel size of 3μm.

With a maximum outer diameter of Φ15mm, the YT-7603-F1 can be evaluated for robotic camera designs where both wide-angle coverage and space-efficient integration are important.

Designed for Multiple Robotic Vision Applications

The YT-7603-F1 Robotic Vision Lens is designed for evaluation in a range of robotic vision applications, including:

• AMR and AGV Navigation: Wide-angle visual input for autonomous movement in warehouses, factories, and logistics facilities.
• Robot Obstacle Detection: Broad scene capture to support obstacle-recognition and collision-avoidance systems.
• Humanoid Robot Vision: Environmental observation for robotic perception and movement-related tasks.
• Service and Delivery Robots: Surrounding-scene monitoring in commercial buildings, offices, and indoor delivery environments.
• Visual SLAM and Robotics R&D: Fisheye imaging for selected visual navigation, mapping, and perception projects.

For fisheye-based applications, camera calibration and distortion correction may be required, depending on the image-processing pipeline and system requirements.

Key Specifications of the YT-7603-F1

- Effective Focal Length: 1.34mm

- Aperture: F2.0

- Field of View (H/V/D): >200° / 127° / >200°

- Sensor Format: 1/2.7 inch

- Maximum Resolution: 2MP (1920 × 1080)

- Mount: M12 × P0.5

Supporting the Future of Robotic Vision

As robotics expands across logistics, manufacturing, commercial services, and autonomous systems, reliable optical components remain an essential part of camera-based perception. Wintop Optics continues to develop optical imaging solutions for robotic vision, automotive imaging, industrial equipment, and smart devices.

With 20 years of optical lens manufacturing experience, Wintop Optics provides lens solutions for a wide range of imaging applications, with support for optical customization and mass-production requirements.

Looking for an ultra-wide fisheye lens for your robotic vision project? Contact Wintop Optics to discuss sensor compatibility, field-of-view requirements, mechanical integration, and potential customization options.
